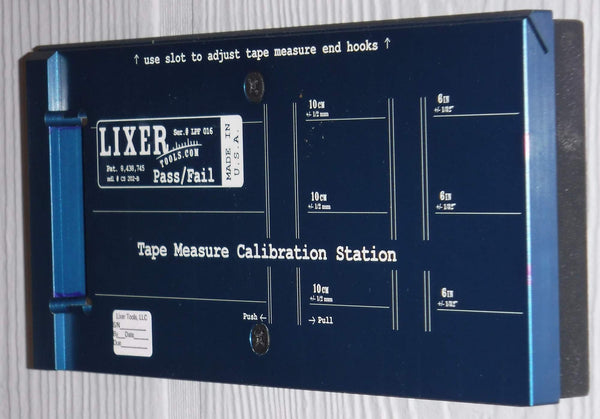

The Lixer Calibration Station was designed to check shop/employee tape measures as they enter and exit the work place. This can be done easily and quickly with the The Lixer Calibration Station. The Pass/Fail Calibration Station mounts securely to any wall and accommodates most tape measures.
The Pass/Fail Lixer has a pair of lines that are lasered for the push measurement, and a pair of lines that are lasered for the pull measurement, that are +/-1/32" from center at 6" or +/- .5mm from center at 100mm. This permits easy identification of standard and metric tape measures that are within this range. The laser lines can be aligned with the 1/32" marks on most [standard] tape measures. This will enhance your ability to verify accuracy by checking two 1/32" marks +/- at 6" or +/- at 3" or +/- .50mm at 100mm on both the push and pull measurements. This tool can also be used to inspect rulers as well.
Accuracy +/-.005".
Initial order comes with padded Shipping / Storage box. This box should be saved to use when sending the tool(s) back for recertification.
